6" x 36" Inline Filter Assembly

6" TC x 36" Inline Sanitary Filter Assembly - PATENT PENDING

0 Review(s) Write a Review

Your Price: $670.00

this sanitary inline filter comes in various mesh micron and barb sizes

Questions about this item? Be the first to ask here.

Part Number: 6x36Inline

Availability: Not for Sale.

What size mesh would you like? *

What size hose barb would you like on your inline filter? *

What type of gaskets would you like? *

TC Connection Size *

Would you like to add a Perforated Backer ? *

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Description

Inline Filters keep liquids contained and are perfect for filtering Beer, paint, oils, honey, water, soaps, and much more. They are easy to clean and maintain. Inside is a 100% stainless steel filter cartridge that is removable, washable, and are easily replaced. PATENT PENDING

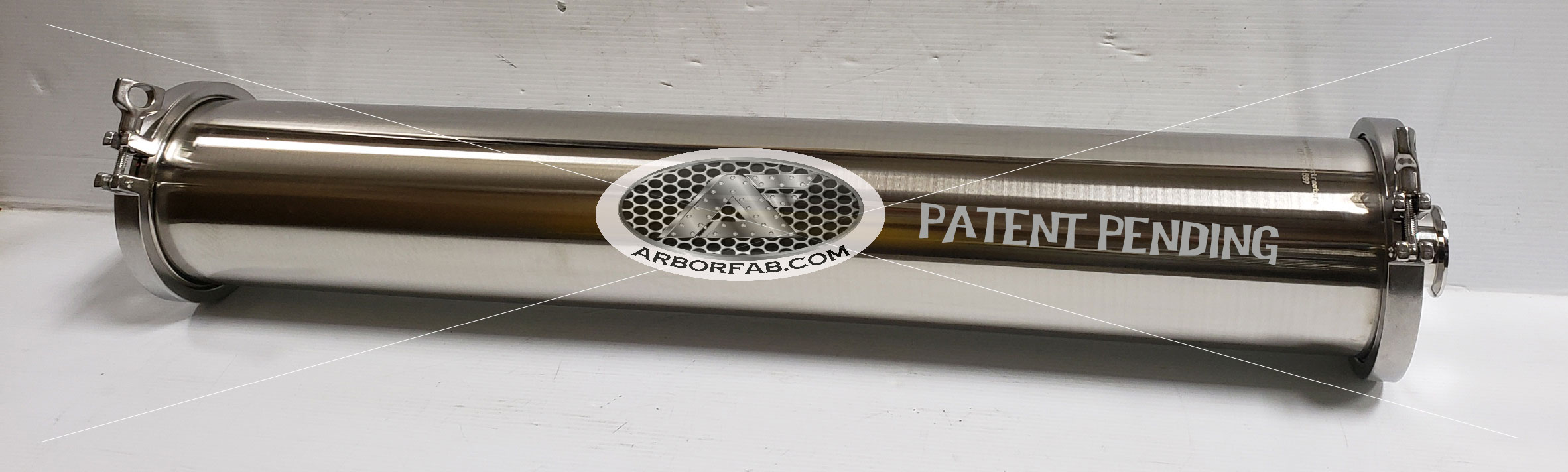

36" Inline Sanitary Filter Assembly

Filter specifications:

We have a wide range of stainless steel mesh to fit your needs.

-5 & 15 micron - used for extremely fine filtering.

-43, 74, & 100 micron - perfect for cold brew coffee and teas.

-120, 149, 177 & 234 micron - typically used for herbal oil extraction

-300 micron - great for capturing pellet hops

-400 micron - great for capturing whole leaf hops

-600+ micron - typically used for thicker substances such as oils and paints

What’s Included

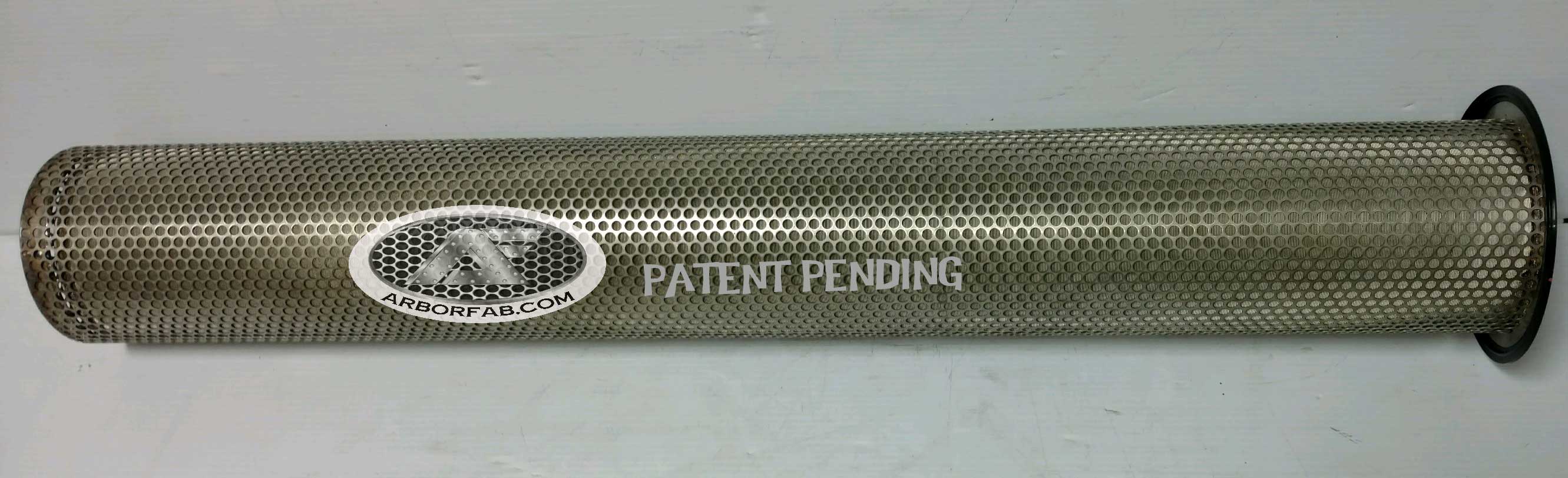

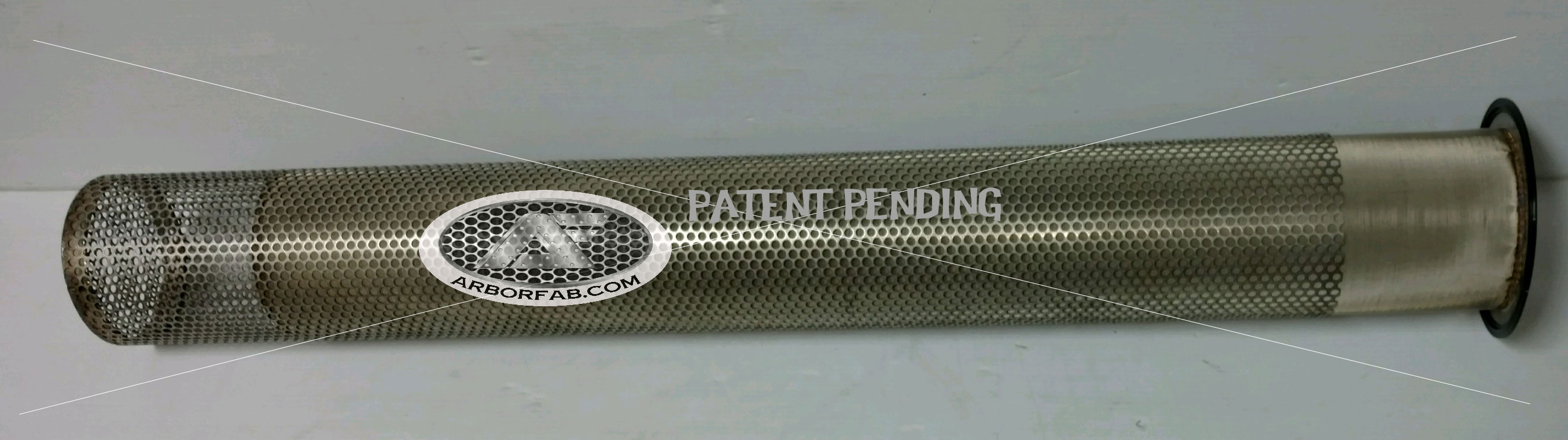

(1) 5 ” x 35” long stainless steel filter

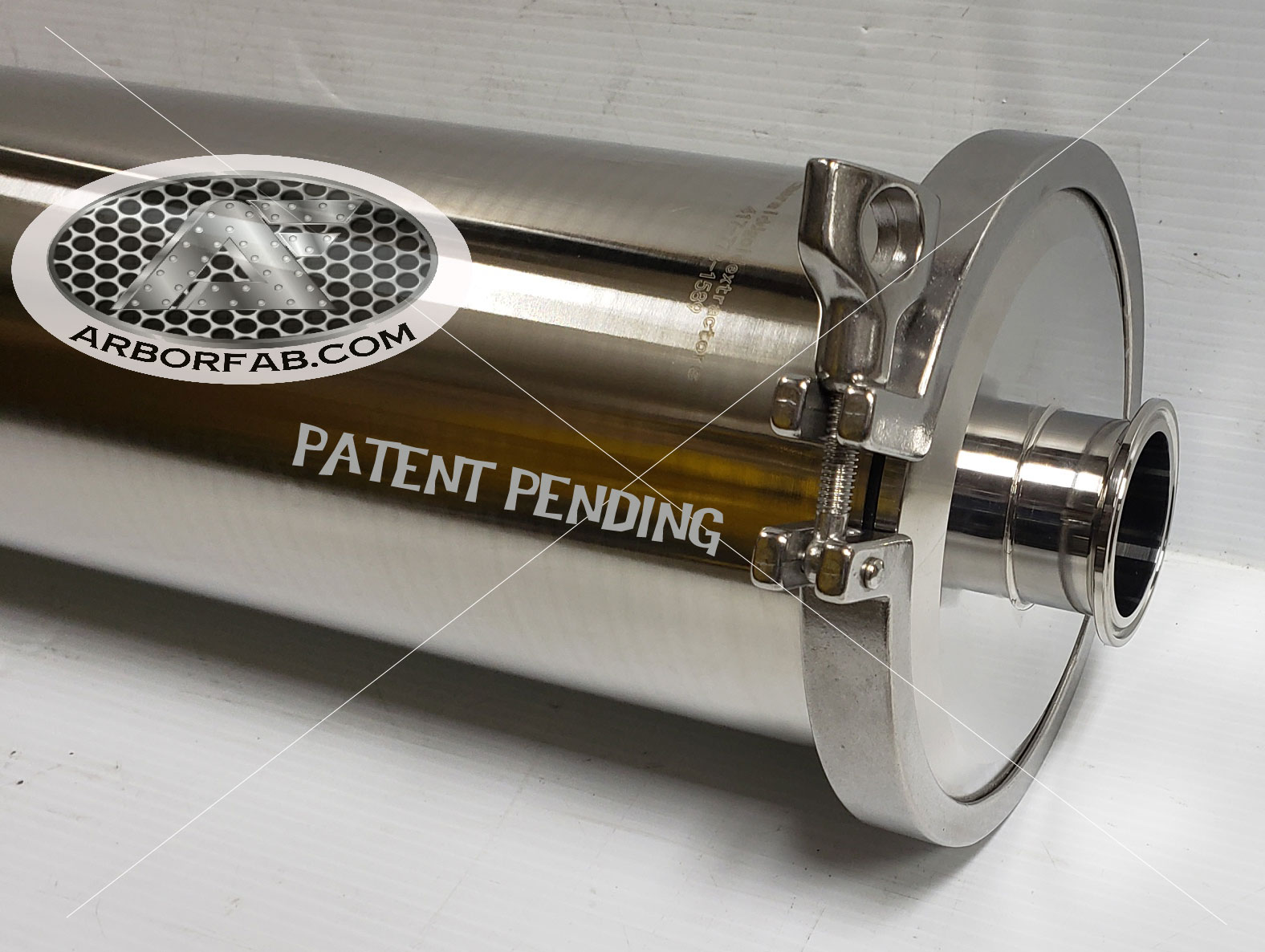

(1) 6” x 36” long solid tri-clamp spool

(2) 6” tri-clamps

(2) 1 ½” or 2"TC or hose barb to 6” tri-clover fittings

(1) Split Tri-clover Gasket

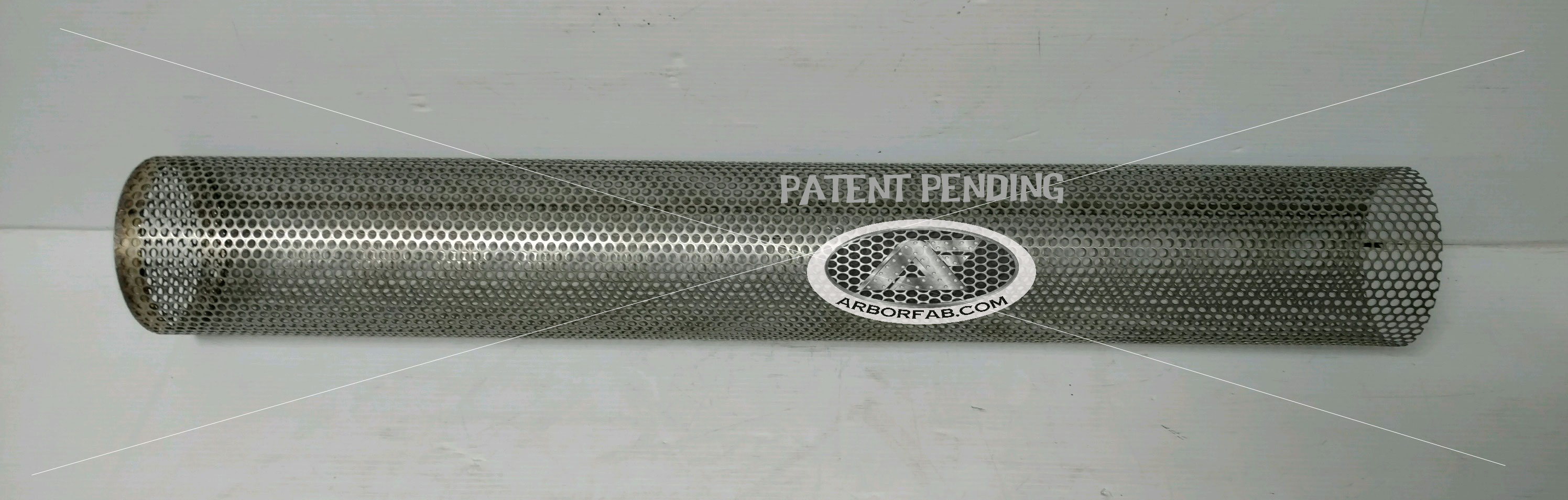

(1) Uncut Tri-clover Gasket Check out the OPTIONAL PERFORATED BACKER (for an additional charge)

Gasket Options

Buna is designed to have a resistance to oil, hydrocarbons, and chemicals. It is readily used in the brewing world, as well as in the crude oil and petrochemical industries. Buna has a temperature rating of -40 to +212 Fahrenheit.

EPDM is designed to have a resistance to ozone, sunlight, oxygen, acids, alkalis, ketones and aging. EPDM has a temperature rating of -40 to +225 Fahrenheit.

Viton is designed to handle strong acids, petroleum products, solvents, and oils. It is not recommended for use with hydrocarbons, ketones, and steam. Viton has a temperature rating of +5 to +400 Fahrenheit.

MAY TAKE APPROX 2-3 WEEKS TO BUILD AND SHIP. Orders are custom made as they come in and during peak times, these times can be extended.

Please contact us for additional or replacement gaskets.
