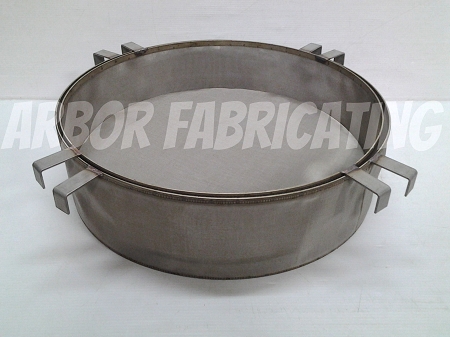

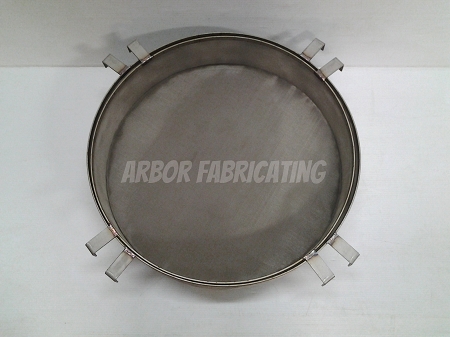

21" X 5" and 22" X 6" Drum Combo Filter Stainless Steel Mesh
This set of drum filters can fit into a 55 gallon drum with at least a 22 ½” opening, fitted with (4) 1” by 2” sturdy tabs that can easily hold 50 pounds.

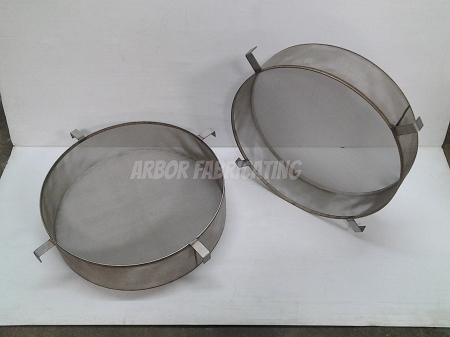

Overall dimensions of the inner filter: 20 ½” diameter by 5” deep.
Overall dimensions of the outer filter: 21 ½” diameter by 6" deep.
They are great for stage filtering which allows you to filter through more than one micron size in one step.They are made from 100% stainless steel, easy to clean, and can withstand several hundred degrees without any damage to the filter. They are great for filtering oils, fuels, water, soaps, and much more. Unlike other filters, our design allows for flow through the bottom and the sides for more efficient filtering!
Each filter is available in the following micron sizes:
5 (with side supports, cross brace and 1000 micron backer), 15 (with side supports and cross brace), 43 (with side supports and cross brace), 74, 100, 120 (with side supports), 149 (with side supports) 177, 234, 300, 400, 500, 600, 800, 1000 and 1526 micron, 1/8" mesh, 1/4" mesh
Fits most steel drums, not designed for plastic drums
Don't forget to add some PBW for cleaning purposes!
MAY TAKE UP TO A WEEK TO BUILD AND SHIP.
CUSTOM SIZES AVAILABLE
